Fig. 7


Download original image

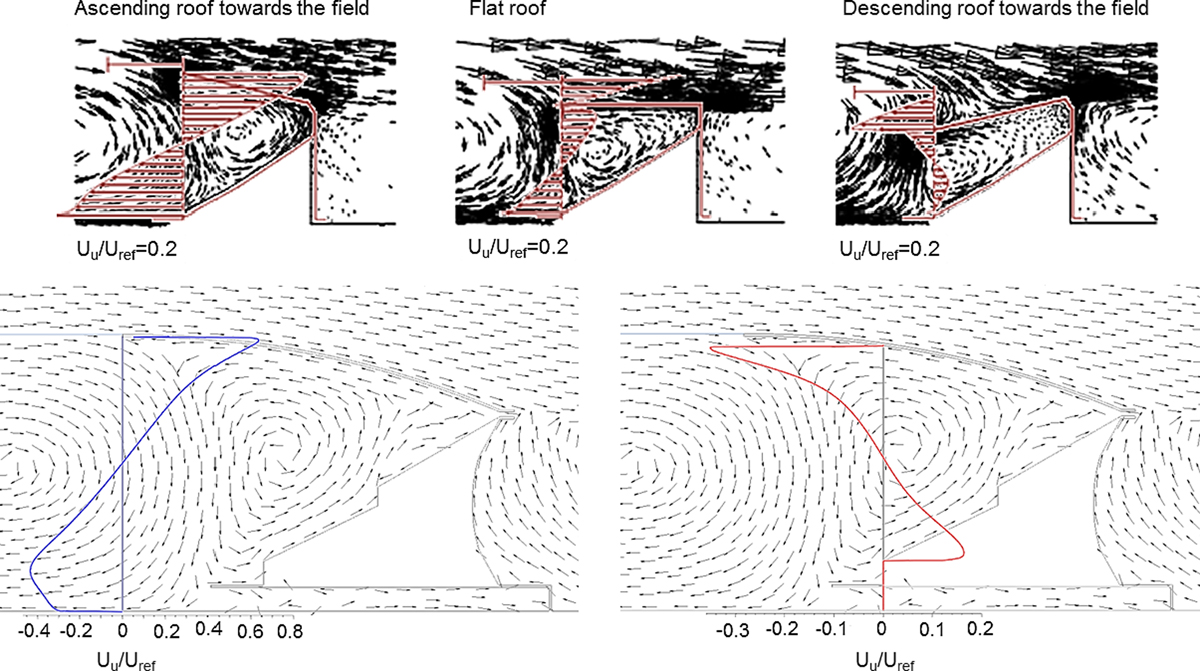

Wind distribution on three different roof configurations, and corresponding graphs of the dimensionless horizontal component of velocity along the vertical direction [5] (top); interaction between the primary and the secondary vortex, based on the horizontal components of velocity magnitude in two vertical lines (bottom); roof edge level (left) and spectator tiers level (right).
